The car wash lighting system is engineered to meet the demanding needs of automotive cleaning and maintenance facilities. Utilizing advanced LED technology, this lighting kit delivers powerful illumination while maintaining energy efficiency and longevity. Its modular hexagon design allows for flexible installation patterns — including surface, suspended, or custom ceiling layouts — adapting perfectly to workshop sizes ranging from compact detailing bays to expansive car wash halls.
Built with high‑quality aluminum housings and corrosion‑resistant PC covers, this car wsh lighting design offers outstanding thermal management, ensuring stable performance and long service life even under continuous operation. Its superior color rendering index (CRI > 90) makes it ideal for tasks requiring precise color recognition, such as paint inspection, finish evaluation, and detailing.
The ZT2078 car wash light supports both DIY assembly and customized configurations, providing site designers and installers with the freedom to create tailored lighting layouts that improve safety, visibility, and operational efficiency. Whether for professional use in automotive service centers or for high‑end garage setups, this light delivers reliable performance, robust construction, and remarkable luminance that surpasses conventional lighting solutions.
Key Highlights:
- High Brightness LED Output – Delivers consistent illumination with high luminous efficacy (110–120 lm/W).
- Excellent Color Rendering – CRI > 90 for true color visibility in detailing and inspection tasks.
- Modular Hexagon Design – Flexible configurations for customized layouts.
- Robust Build Quality – Durable aluminum frame with PC cover for long‑lasting performance.
- DIY & Professional Install Compatible – Can be surface‑mounted, suspended, or incorporated into ceiling grids.
- Energy Efficient & Long Life – Reduces electricity costs and extends service intervals.
Car Wash Light Parameters:
| Specification | Details |
|---|---|
| Model Code | ZT2078 |
| Power | 288W |
| Voltage | AC100‑240V |
| Luminous Flux | 110‑120 lm/W |
| CCT | 6500K (Cool White) |
| CRI | >90 |
| Material | Aluminum + PC Cover |
| Set Quantity | 4 pcs Rectangles |
| IP Rating | IP54 |
| Installation | Surface / Suspended |
Where to Use:
- Car wash facilities
- Automotive workshops
- Detailing and polishing bays
- Repair garages and body shops
- Showroom and display areas
- Commercial car service centers
- Professional garage and industrial ceilings
Performance Highlights
- Voltage Range: AC100‑240V (supports global electrical systems)
- Power Consumption: 288W per set – optimized for efficiency and brightness.
- Luminous Output: 110–120 lm/W – bright and eye‑friendly illumination.
- Color Temperature: 6500K – crisp white light ideal for detailed task environments.
- CRI: >90 – excellent color accuracy for professional inspection.
- IP Rating: IP54 – suitable for semi‑exposed indoor environments.
LED Car Wash Lighting vs Traditional Lighting
Compared to conventional lighting systems such as fluorescent tubes or halogen lamps, the ZT2078 LED system provides significant advantages:
| Feature | Traditional Lighting | ZT2078 LED Lighting |
|---|---|---|
| Brightness | Uneven, dim over time | High and consistent |
| Energy Consumption | High | Energy efficient |
| Lifespan | Short | Long-lasting |
| Maintenance | Frequent replacement | Minimal maintenance |
| Light Quality | Low CRI | CRI >90 |
By upgrading to LED lighting, automotive businesses can improve working conditions while reducing maintenance costs and energy consumption.
How to Install
- Mounting Options:
- Surface mount directly to ceiling with screws.
- Use included brackets for suspended or adjustable installations.

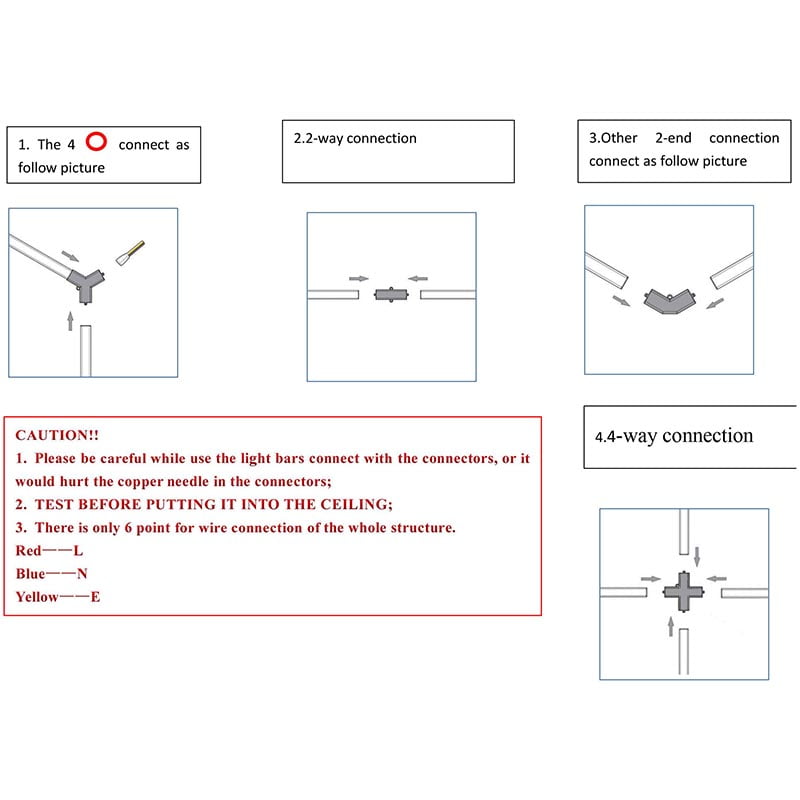

- Connection Guidelines:
- Ensure alignment of connectors before assembly to avoid damage.
- Test the entire LED set with a multimeter before connecting to power.
- Safety Notes:
- Read the full circuit diagram before installation.
- Installation should be performed by a qualified electrician.
FAQ
Q: Is the ZT2078 suitable for outdoor car wash areas?
A: The unit is rated IP54 for indoor and semi‑protected environments. For full outdoor exposure, additional protective housings are recommended.
Q: Can this LED system be used with dimmers?
A: ZT2078 is designed for constant voltage operation; check compatibility with dimming drivers before use.
Customization and OEM Support
The ZT2078 lighting system supports a wide range of customization options to meet specific project requirements. From layout design to size adjustments and packaging, the system can be tailored for different applications.
OEM and light order support is available for distributors, contractors, and large-scale projects, ensuring consistent quality and scalable supply.
