LED Workshop Light ZG/C80 – 2542mm*4893mm

      • Sample protocol: 1-2 days
      • Supply ability: 150,000 pcs/month
      • Response time: ≤3h
      • R&D engineer: 15
      • On-time delivery rate: 98%
      • QA/QC inspectors: 8
      • IP rating: IP54
      • Warranty: 2-5 years
      • Delivery: 5-10 days
      • Custom: OEM/ODM
      • CAD drawings or 3D renderings
      • Professional lighting solutions

    LED workshop light is designed for automotive lighting, suitable for various scenes including car maintenance, car detailing, polishing, and car washing.

Get A Quote
Contact Us

LED workshop light manufacturing:

Introducing our hexagon led light, the perfect lighting solution for the automotive industry.

With its high-quality LED technology, this workshop lights LED provides excellent brightness and efficiency, allowing you to work on your DIY projects with ease. Our product’s advantages and selling points include its long lifespan, energy-saving features, and easy installation. It is suitable for a wide range of automotive lighting scenarios such as auto repair, auto detailing, polishing, and car washing.

Whether you are a professional mechanic or a DIY enthusiast, our LED workshop light is an essential tool for your workshop. Browse our product page for more details and get in touch with us for any inquiries.



LED workshop light parameters:

Item Code ZG/C80
Space Size W2542mm * L4893mm
Qty/SET 6 pcs
Parameters Voltage AC100-240V
Width 80mm
Luminous Flux 110-120lm/w
CRI. >90
CCT. 6500K (White)
Material Aluminum + PVC Cover
Remark PVC Connectors



Application:

Honeycomb led light is versatile and can be used for a variety of scenes, including automotive shops, auto body shops, auto detailing shops, auto repair shops, car wash shops, workshops, garages, showrooms, gyms, ceiling, gaming, wall, barber shop, supermarket and more.



Function:

1. LED car workshop light offers professional services with high-quality illumination that is non-flickering, non-glare, and non-shadow, ensuring that the body paint color remains undistorted and protected.
2. A color temperature range that is most suitable for construction is adopted, reducing visual fatigue for maintenance personnel and enhancing the natural beauty of the car.



Advantages:

1. Easy to install: The car workshop light can be surface-mounted or suspended from the ceiling, providing convenient overhead task lighting for car detailing. They can be directly fixed to the ceiling with screws or easily installed with mounting brackets.
2. DIY assembly design: You can assemble them yourself, unleash your imagination, and create various patterns that you like.
3. Cost-saving: With standardized factory production, installation instructions, and video demonstrations, customers can save more than 60% on labor and capital investment compared to traditional decoration.
4. Personalized custom design: We support size customization to meet your personalized needs.
5. Provide CAD drawings and professional lighting solutions: Customers only need to provide site dimensions and our sales engineers can design lighting adjustments, and provide structural layout drawings, or 3D renderings.



Our production capacity is

6,000 pieces per day.



OEM/ODM manufacturing capability:

We have a professional automotive beauty lighting team. We are a manufacturer of automotive beauty lighting that integrates research and development and production. We also have a united, mature, and highly standardized R&D team. We continuously challenge ourselves in the field of product innovation, striving to provide customers with innovative and reasonably designed automotive beauty lighting.



Our commitment:

We are an ODM/OEM manufacturer, and our LED workshop light is customer-centric. Our products are designed to industry standards and are durable. We provide high-quality products and services customized to meet your personalized needs and ensure that your project has the best products and support.



Common search terms:

LED workshop light



Installation

Download Installation Instructions Here



car light workshop



Please carefully read the “Circuit Diagram” before assembling

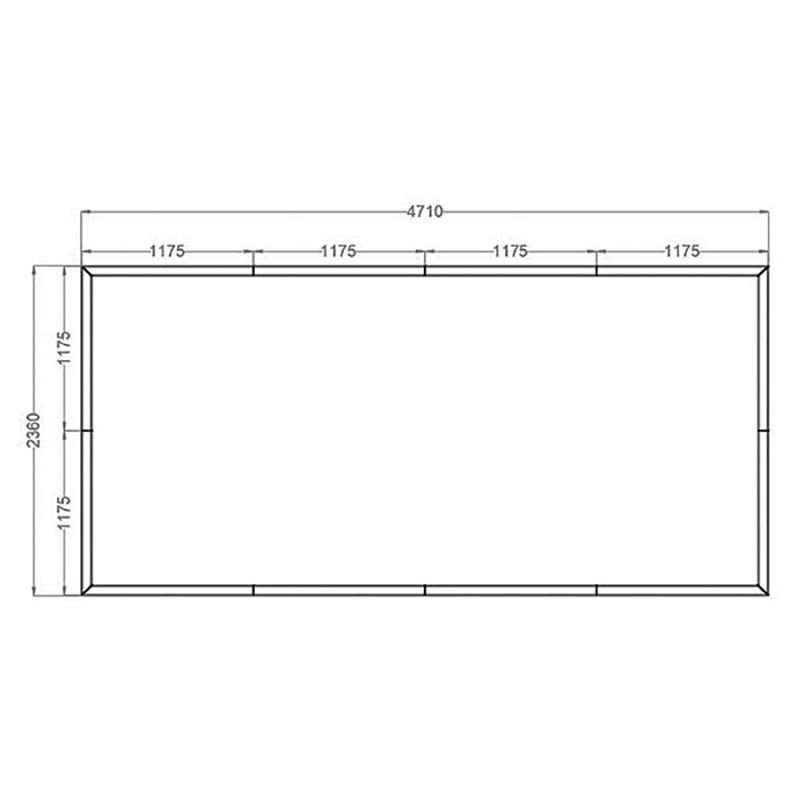

Garage LED Lights Circuit Diagram-1



System Parts List

No. Name Specification Qty Unit
1 Light bars 1175mm*80mm 12 pieces
2 Lamp connectors 90° 4 pieces
3 Lamp connectors 180° 8 pieces
4 一 iron sheet 101*10mm    4 holes 16 pieces
5 L iron sheet 42*42*10mm 4 holes 8 pieces
6 Buckles 75mm 12 pieces
7 Self-tapping screw M5*10mm 24 pieces
8 Countersunk screw M5*4mm 96 pieces
9 Plastic expansion bolt M4*25mm 24 pieces
10 LED driver 400W 2 pieces
11 LED driver mounting Fix the LED driver on the lamps 1 pieces
12 Installation 1 pieces



Technical Data

Voltage AC110V
Power 680W
Current 12.4A



Assembling Instruction

12 pieces of light bars, for 2 groups, different groups do not wire together.

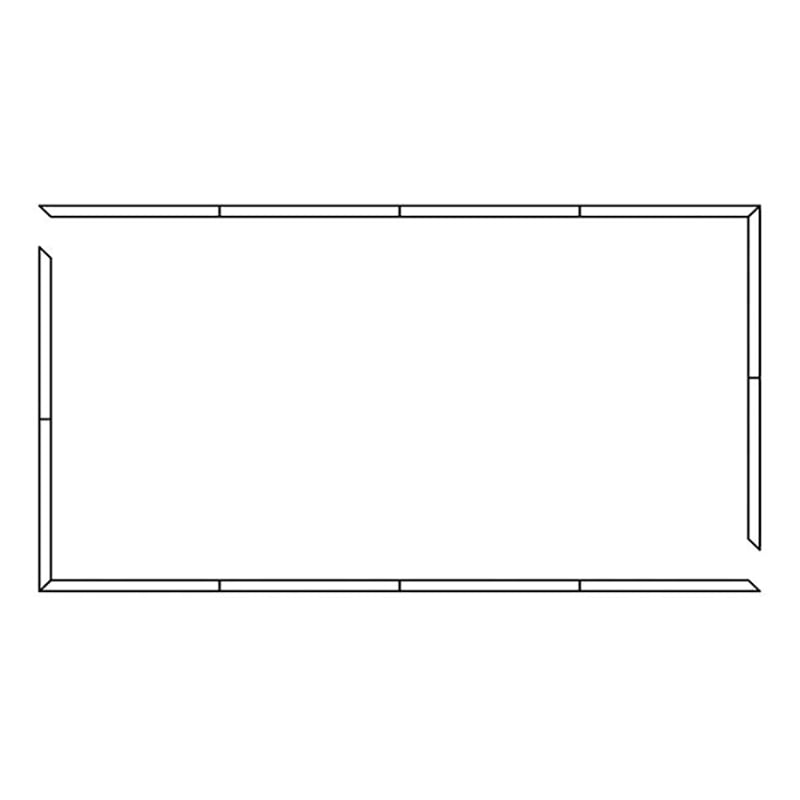

Garage LED Lights Assembling-1

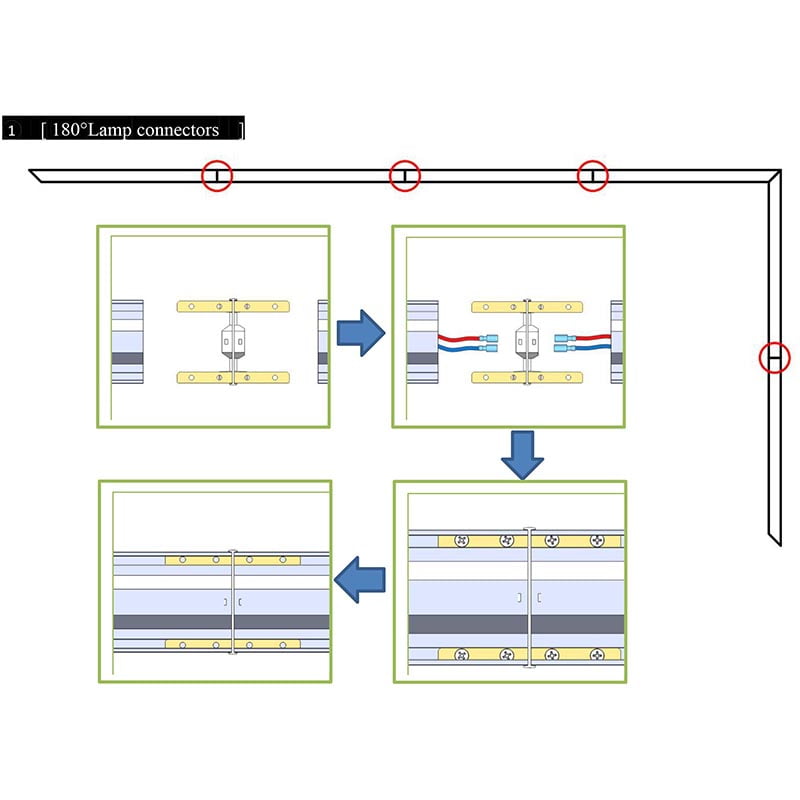

Garage LED Lights Assembling-2

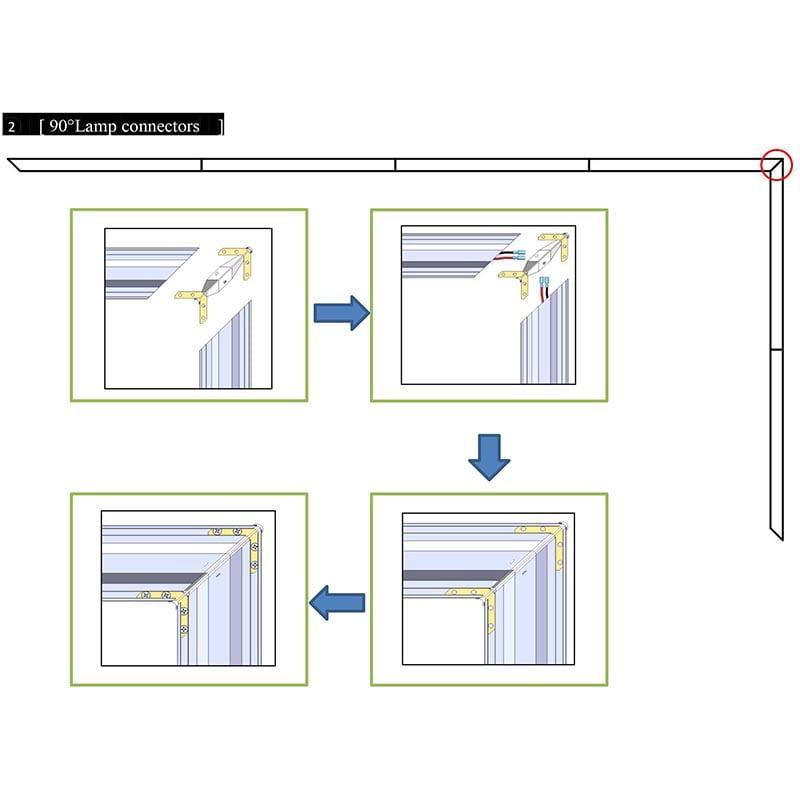

Garage LED Lights Assembling-3

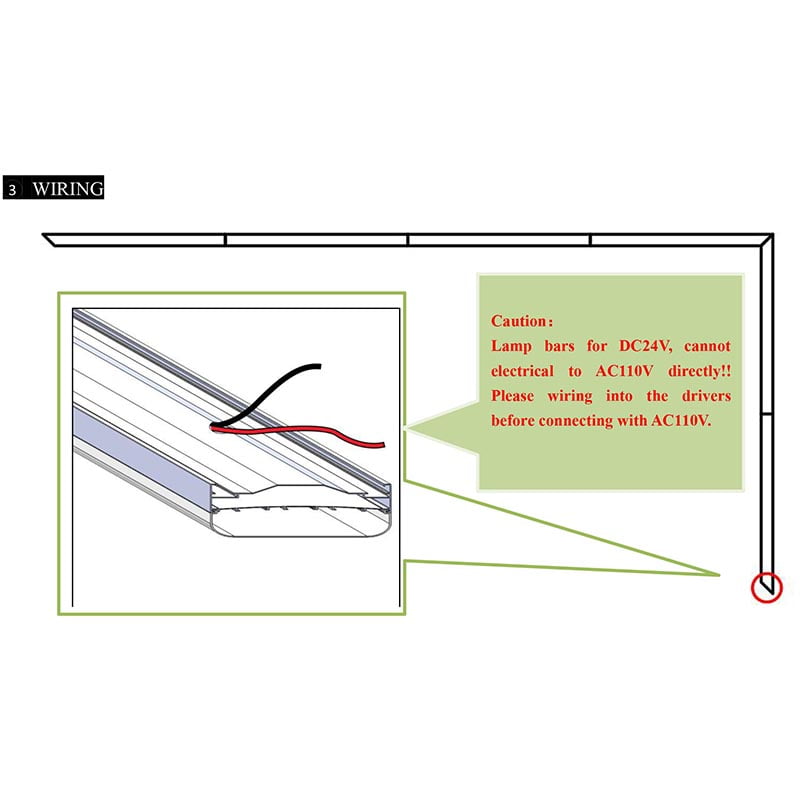

Garage LED Lights Assembling-4

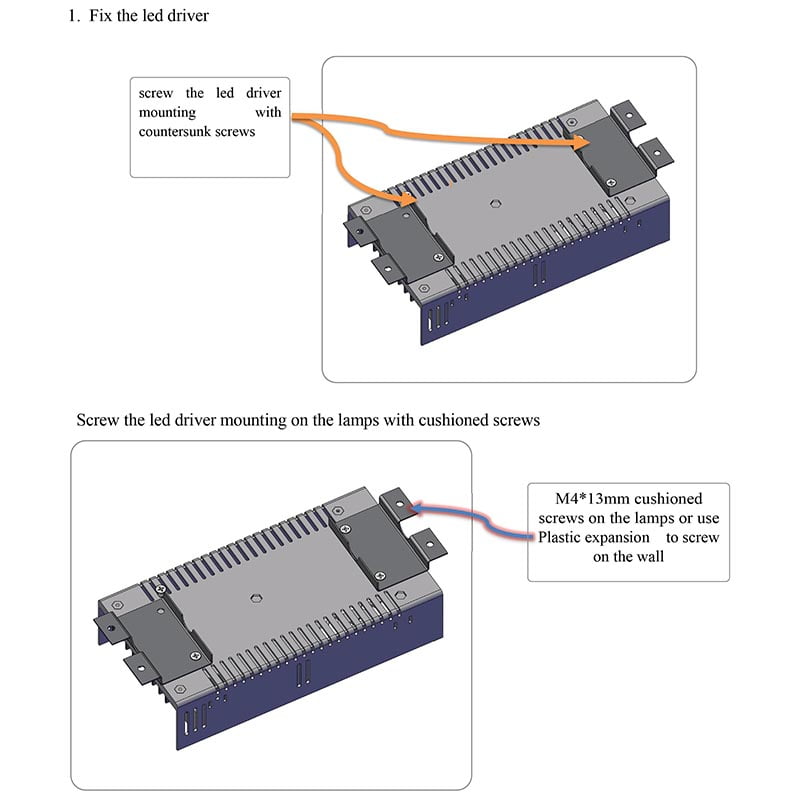

Garage LED Lights LED Driver-1

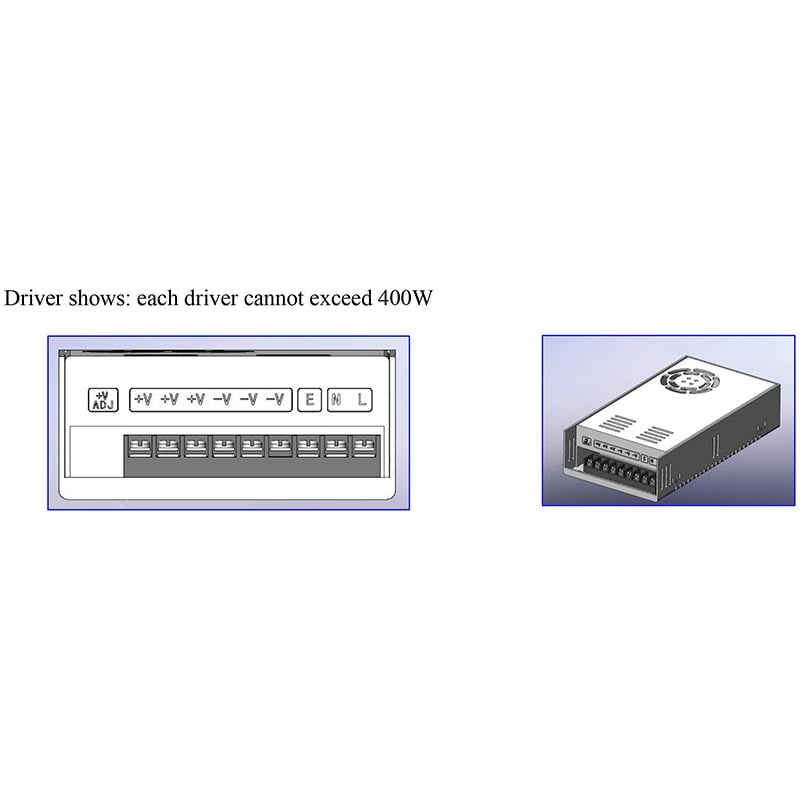

Garage LED Lights Driver-2

V+: positive pole DC24V【CONNECT WITH RED WIRE OF LAMPS】

V-: negative pole DC24V【CONNECT WITH BLACK WIRE OF LAMPS】

E: earth lead
N: null line AC110V
L: live wire AC110V

Remarks: there are 2 pieces of 400W drivers for the lamp,2 groups of wires out from the lamp, and divide the 2 groups of electrical to 2 drivers.

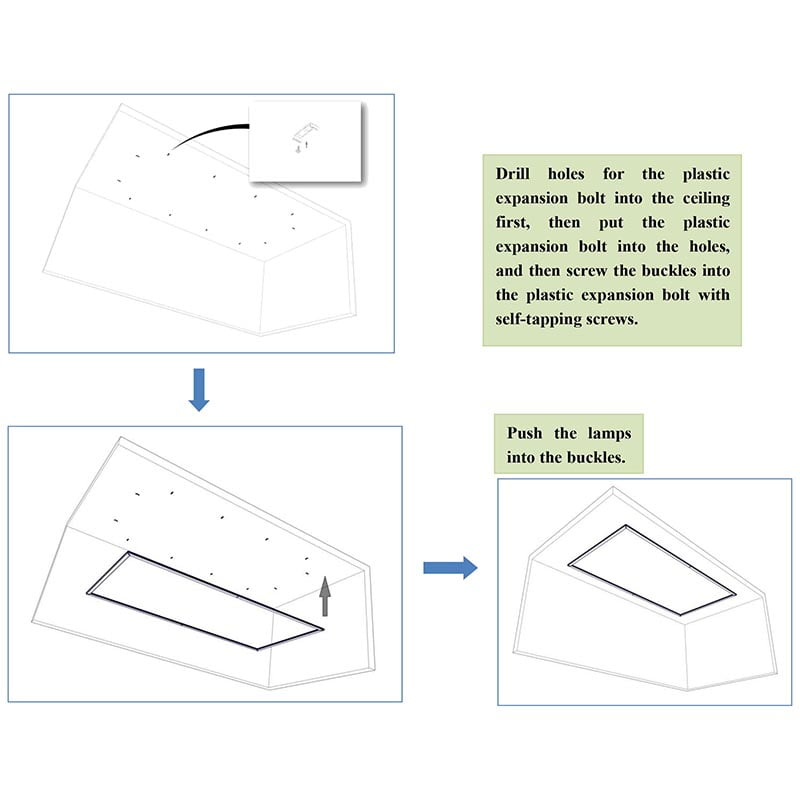

Garage LED Lights Mounting Instruction
How to fix it on the ceiling?

Garage LED Lights Mounting instruction
