Light Tunnel

Lighting tunnel for car polishing showroom garage light

      • Sample protocol: 1-2 days
      • Supply ability: 150,000 pcs/month
      • Response time: ≤3h
      • R&D engineer: 15
      • On-time delivery rate: 98%
      • QA/QC inspectors: 8
      • IP rating: IP54
      • Warranty: 2-5 years
      • Delivery: 5-10 days
      • Custom: OEM/ODM
      • CAD drawings or 3D renderings
      • Professional lighting solutions

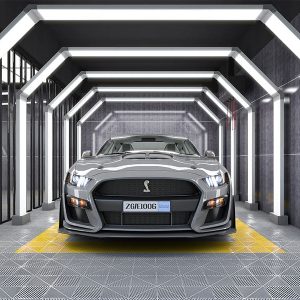

    Lighting Tunnel – the ultimate lighting solution for the automotive industry. Specifically designed for car polishing, coating detailing, repair, and car wash applications, Lighting Tunnel delivers exceptional illumination for all your automotive needs.

Get A Quote
Contact Us

Lighting tunnel manufacturing:

Introducing the ultimate lighting solution for the automotive industry – Light Tunnel! With its innovative design, the lighting tunnel is the perfect solution for car polishing, coating detailing, repair, and car wash applications.

This state-of-the-art lighting system is specifically engineered for the automotive industry, providing optimal illumination and enhancing productivity. The unique tunnel shape allows for full coverage of the vehicle, eliminating shadows and ensuring uniform lighting from all angles.

Lighting tunnel is the perfect solution for car workshops looking to optimize their workflow and increase efficiency. Its advanced LED technology delivers bright, energy-efficient lighting that is gentle on the eyes, creating a safe and comfortable working environment for technicians.

Whether you’re a professional detailer or an automotive enthusiast, the light tunnel is a game-changer for your business. With its unparalleled illumination and exceptional design, it’s no wonder why so many car workshops are making the switch to light tunnel LED.



Lighting tunnel parameters:

Item Code  ZG/E1015
Space Size W4m*L5.37m*H2.615m
Qty/SET  5 groups
Parameters Voltage  DC24V↔AC100-240V
Width 100mm + 600mm
Power 32w/m
Luminous Flux 110-120lm/w
CRI.  >90
CCT.  6500K (White)+ 3000K (Warm )
Material Aluminum + PC Cover

Remarks:

1. Each group is composed of 5 tubes, it can stand independently for the standard size, and is installed against the wall while exceeding the standard width.
2. Can be customized.



Application:

Light tunnels are versatile and can be used for a variety of scenes, including automotive shops, auto body shops, auto detailing shops, auto repair shops, car wash shops, workshops, garages, showrooms, and more.



Function:

1. The led tunnel light offers professional services with high-quality illumination that is non-flickering, non-glare, and non-shadow, ensuring that the body paint color remains undistorted and protected.
2. A color temperature range that is most suitable for construction is adopted, reducing visual fatigue for maintenance personnel and enhancing the natural beauty of the car.



Advantages:

1. DIY assembly design: You can assemble them yourself, unleash your imagination, and create various patterns that you like.
2. Cost-saving: With standardized factory production, installation instructions, and video demonstrations, customers can save more than 60% on labor and capital investment compared to traditional decoration.
3. Personalized custom design: We support size customization to meet your personalized needs.
4. Provide CAD drawings and professional lighting tunnels supplier solutions: Customers only need to provide site dimensions and our sales engineers can design lighting adjustments, and provide structural layout drawings, or 3D renderings.



Our production capacity is

6,000 pieces per day.



OEM/ODM manufacturing capability:

We have a professional automotive beauty lighting team. We are a manufacturer of automotive beauty lighting that integrates research and development and production. We also have a united, mature, and highly standardized R&D team. We continuously challenge ourselves in the field of product innovation, striving to provide customers with innovative and reasonably designed automotive beauty lighting.



Our commitment:

We are an ODM/OEM manufacturer, and our lighting tunnel is customer-centric. Our products are designed to industry standards and are durable. We provide high-quality products and services customized to meet your personalized needs and ensure that your project has the best products and support.



Common search terms:

Lighting tunnel, light tunnel, light tunnel LED, tunnel light



Installation

Download Installation Instructions Here



led tunnel lighting



Design sketch

5 groups (Please carefully read the “Circuit Diagram” before

led tunnel lighting Circuit Diagram-1

led tunnel lighting Circuit Diagram-2



LED tunnel lighting system Parts List

No. Name Specification Qty Unit Pic.
1 The post LED light bar L:1780mm W:100mm 10 piece L1
2 Sloped led light bar L:900mm W:100mm 10 piece L2
3 Top led light bar L:2500mm W:100mm 5 piece L3
4 Driver for light bars 400W 5 piece D1
5 3-terminal quick union Orange and gray 30 piece K1
6 5-terminal quick union Orange and gray 10 piece K2
7 0.6m lighting box 0.6x1.2m white &warm white 20 piece H1
8 Driver for lighting box AC220v    40w 40 piece D2
9 Connector for lighting box L:1.2m Gray 20 piece G1
10 Wires for lighting box L:1.5m        1with2 40 piece X1
11 Tool’s hanging board 1.2m with pothook 8 sets W1
12 Connector for Tool’s hanging board L:1.2m Gray 16 piece G2
13 Towel box 420x420mm 4 piece W2
15 Towel hanging rod sets rod*1+mounted plate*2 1 set J1/2
16 Control System 2 terminals 1 set J3
17 Mounted plate for light bars’ drivers 10 piece G4
18 Countersunk screws 4x4mm for mounted plate 20 piece S1
20 Cushioned screw 4x12mm for connectors of the top lighting box 85 piece S2
21 Self-tapping screw 4x13mm for connectors of light bars and tool board, also towel box and other hanging rod sets 155 piece Z1
22 Self-tapping screw 4x25mm for connectors of the lighting box 150 piece
23 Installation instruction - 1 piece



LED tunnel lighting  Technical Data

Voltage AC220V
Power 2857W
Current 23.8A
Width 100mm +600mm
Luminous Flux 110-120lm/w
CRI. 90
CCT. 6500K (White
Material Aluminium+PVC cover



Assembling instruction

led tunnel lighting Assembling-1

led tunnel lighting Assembling-2

led tunnel lighting Assembling-4

led tunnel lighting Assembling-5



LED tunnel lighting Circuit diagram

There are 10 wire entries for the whole set,and each for 2 wires. Parallel connecting as follow:

led tunnel lighting Circuit Diagram-3



LED tunnel lighting Remark

1. the red wires connect with the positive pole, and the black wire connects with the negative pole;

2. each driver cannot control the light bar more than 400W;
3. this product should be installed by trained electricians;



Driver Show:

led tunnel lighting Circuit Diagram-4
